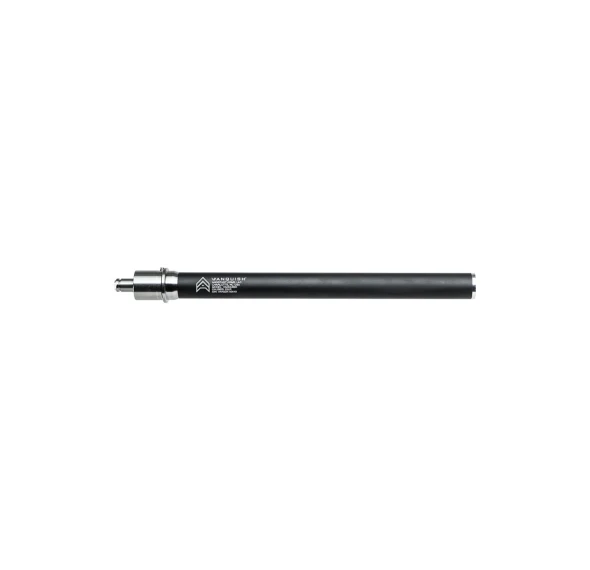

Angstadt Arms Vanquish AR-22 Barrel

The Angstadt Arms Vanquish AR-22 Barrel is an integrally suppressed .22 LR barrel assembly designed for AR-22 platforms using CMMG® dedicated .22 LR bolt systems. Available in 12-inch and 18-inch lengths, the barrel features precision porting intended to reduce standard-velocity .22 LR ammunition to subsonic speeds. The suppressor uses a baffle-free design, which minimizes internal fouling and simplifies maintenance compared to traditional rimfire suppressors. Constructed with a stainless steel bull-profile barrel and an aluminum suppressor shroud, the Vanquish AR-22 is intended as a direct-fit replacement with no permanent modifications required.

Specifications

• Caliber: .22 LR
• Platform Compatibility: AR-22 (CMMG® dedicated .22 LR bolt systems)
• Barrel Length Options: 12″ or 18″
• Chamber: Sporter
• Barrel Material: 416R stainless steel
• Suppressor / Shroud: 6061 aluminum with black Cerakote® finish
• Contour: 0.920″ bull profile
• Full Auto Rated: Yes
• Weight:
  • 12″ (Short): 15.2 oz
  • 18″ (Long): 21.5 oz
